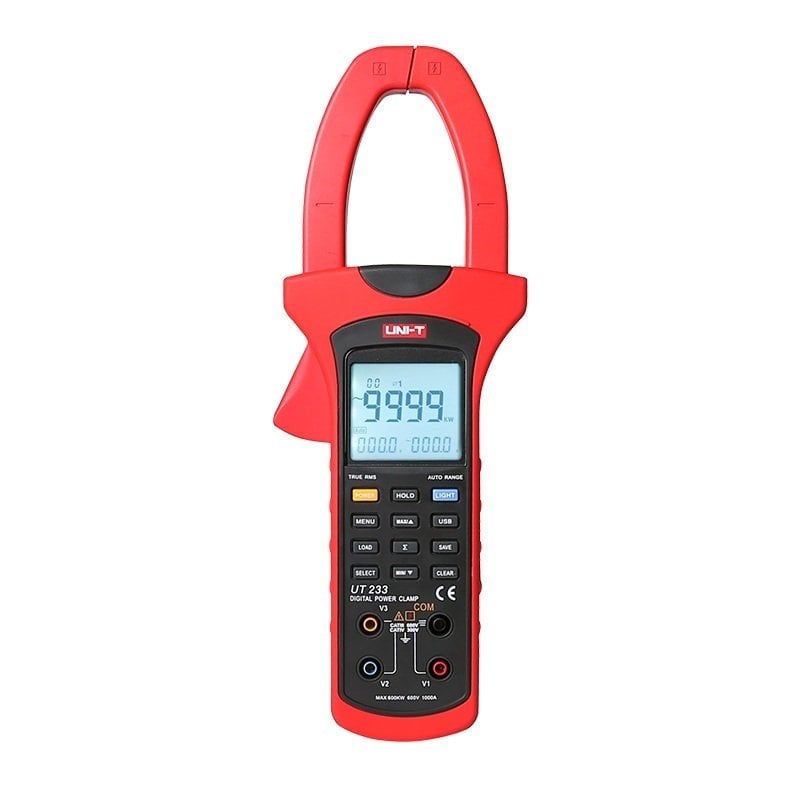

UT 233 Pensampermetre Ölçü Cihazi
- UT 233 Pensampermetre Ölçü Cihazi
- Özellikleri :
- 999 grup veri depolama; tek / sürekli kayıt ve veri çağırma kullanılabilir
- Gerçek RMS gerilim / akım ölçümü
- 3 fazlı 3 telli, 3 fazlı 4 telli ve tek fazlı 2 telli ölçümler
- 10000 sayı LCD çift ekran
- Ayarlanabilir örnekleme hızı
- Maks / Min modları
- Otomatik aralık, otomatik kapanma, arka ışık, düşük pil göstergesi
- USB arabirimi ve PC yazılımı CD'si ile donatılmıştır.
|
Specifications |
Range |
Best Accuracy |
|
Model |
|
UT233 |
|
AC Current (A) |
40A/100A/400A/1000A |
±(2%+5) |
|
AC Voltage (V) |
15V/100V/300V/600V |
±(1.2%+5) |
|
Frequency (Hz) |
20Hz~500Hz |
√ |
|
Active Power (W) |
0.01kW-600kW |
±(3%+5) |
|
Apparent Power (VA) |
0.01kVA~600kVA |
±(3%+5) |
|
Reactive Power (VAr) |
0.01kVAr~600kVAr |
±(4%+5) |
|
Power Factor |
0.3~1 |
±(0.02%+2) |
|
Phase Factor (°) |
0° ～ 360° |
±1° |
|
Active Energy (Wh) |
1~9999kWh |
±(3%+2) |
|
Features |
||
|
Display Count |
|
10000 |
|
Auto Range |
|
√ |
|
Jaw Capacity |
|
50mm |
|
True RMS |
AC Voltage/AC Current |
√ |
|
Auto Power Off |
|
√ |
|
Low Battery Indication |
|
√ |
|
Data Hold |
|
√ |
|
MAX/MIN |
|
√ |
|
Data Storage |
|
99 |
|
USB Interface |
|
√ |
|
LCD Backlight |
|
√ |
|
Full Icon Display |
|
√ |
|
Single-Phase 2-Wire |
|
√ |
|
3-Phase 3-Wire |
|
√ |
|
3-Phase 4-Wire |
|
√ |
|
Phase Sequence Test |
Positive Phase, Reverse Phase, Phase Deficiency |
√ |
|
Auto Calibration |
|
√ |
|
Input Impedance for DCV |
≥10MΩ |
√ |
|
General Characteristics |
||
|
Power |
1.5V Batteries (5﹟) ×4 |
|
|
LCD Size |
46mm X 42mm |
|
|
Product Color |
Red and grey |
|
|
Product Net Weight |
601g |
|
|
Product Size |
303mm X 112mm X 39mm |
|
|
Standard Accessories |
Battery, Test Lead, Aligator Cilp, USB Interface Cable, PC Software CD, Point Contact Temperature Probe |
|
|
Standard Individual Packing |
Gift Box, Carrying Bag, English Manual |
|
|
Standard Quantity Per Carton |
5pcs |
|
|
Standard Carton Measurement |
480mm X 372mm X 315mm |
|
|
Standard Carton Gross Weight |
12kg |
|
