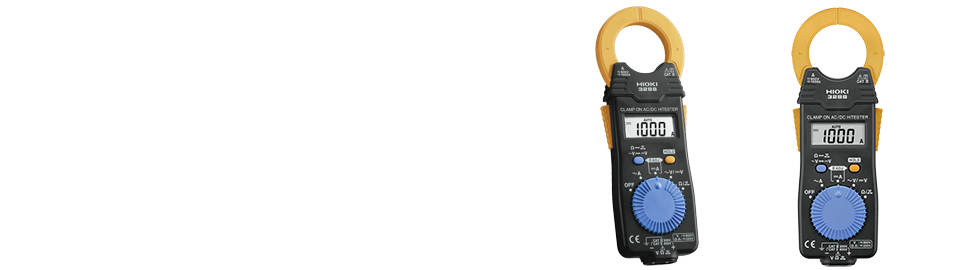

3288 -20 CLAMP ON AC/DC Pensampermetre Ölçü Cihazi

3288

3288-20

DC Current range

100.0/ 1000 A, Basic accuracy: ±1.5 % rdg. ±5 dgt.

AC Current range

100.0/ 1000 A, (10 Hz to 500 Hz, Average rectified),
Basic accuracy: ±1.5 % rdg. ±5 dgt.

100.0/ 1000 A, (10 Hz to 500 Hz, True RMS),
Basic accuracy: ±1.5 % rdg. ±5 dgt.

DC Voltage range

419.9 mV to 600 V, 5 ranges, Basic accuracy: ±1.3 % rdg. ±4 dgt.

AC Voltage range

4.199 V to 600 V, 4 ranges,
Basic accuracy: ±2.3 % rdg. ±8 dgt.
(30 to 500 Hz, Average rectified)

4.199 V to 600 V, 4 ranges,
Basic accuracy: ±2.3 % rdg. ±8 dgt.
(30 to 500 Hz, True RMS)

Resistance range

419.9 Ω to 41.99 MΩ, 6 ranges, Basic accuracy: ±2 % rdg. ±4 dgt.

Crest factor

N/A

3 or less (2 at 1000 A range, 1.5 at Voltage)

Other functions

Continuity: (50 Ω ±40 Ω) or less buzzer sounds, Data hold, Auto power save, Auto zero (DC A)

Display

LCD, max. 4199 dgt., Display refresh rate: 2.5 times/s

Power supply

Coin type lithium battery (CR2032) ×1, Continuous use 60 hours

Coin type lithium battery (CR2032) ×1, Continuous use 35 hours

Core jaw dia.

φ 35 mm (1.38 in)

Dimensions and mass

57 mm (2.24 in) W × 180 mm (7.09 in) H × 16 mm (0.63 in) D, 150 g (5.3 oz)

Accessories

Instruction manual ×1, Test lead L9208 ×1, Carrying case 9398 ×1, Coin type lithium battery (CR2032) × 1
